Pin Coupling Types

Compare pin coupling families, published ratings and shaft interfaces before choosing a model.

Pin coupling types are organized by torque-transfer structure rather than by a long flat list of model names. The four product families below lead to eight published series. Use the family description first, then compare the exact size row for torque, speed, bores and dimensions.

Four product families

Elastic Pin Couplings

Elastic pin couplings use circumferential pins and elastic elements to transmit torque while moderating shock between connected shafts.

Elastic Sleeve Pin Couplings

Elastic sleeve pin couplings place a compliant sleeve around the pins, giving the connection a defined elastic interface for offset compensation and shock absorption.

Elastic Pin Gear Couplings

Elastic pin gear couplings use a jacket-and-pin torque path and are available in cylindrical-bore and conical-bore configurations in the selected range.

Brake Wheel Pin Couplings

Brake-wheel pin couplings integrate the shaft coupling with a coaxial brake wheel, creating a compact interface for drive systems that also require braking hardware.

HC, TC and ZC as structural reference points

HC is the standard elastic pin reference, TC is the elastic sleeve pin reference and ZC is the elastic pin gear reference. Brake-wheel variants extend these concepts where braking hardware must be integrated. GTC expands the sleeve-pin range into a much larger published family, while ZCD adds a conical shaft-hole option.

Zc Vs Zcd Structure Comparison
ZC and ZCD structure comparison

Published product ranges

Series Product Models / sizes Nominal torque range Allowable speed range
HC HC Elastic Pin Coupling HC1-HC14 250 to 180,000 N·m 8,500 to 950 r/min across the published size range
HCL HCL Elastic Pin Coupling with Brake Wheel HCL1-HCL15 560 to 35,500 N·m 5,600 to 950 r/min across the published size range
TC TC Elastic Sleeve Pin Coupling TC1-TC13 16 to 22,400 N·m 8,800 to 1,150 r/min across the published size range
TCL TCL Elastic Sleeve Pin Coupling with Brake Wheel TCL1-TCL9 224 to 22,400 N·m 3,800 to 1,000 r/min across the published size range
GTC GTC Elastic Sleeve Pin Coupling 105-2000 200 to 1,300,000 N·m 10,000 to 550 r/min across the published size range
ZC ZC Elastic Pin Gear Coupling ZC1-ZC23 112 to 2,800,000 N·m 5,000 to 460 r/min across the published size range
ZCD ZCD Conical Bore Elastic Pin Gear Coupling ZCD1-ZCD13 112 to 100,000 N·m 5,000 to 1,500 r/min across the published size range
ZCL ZCL Elastic Pin Gear Coupling with Brake Wheel ZCL1-ZCL9 250 to 31,500 N·m 4,500 to 950 r/min across the published size range

Selection by torque, speed and shaft interface

A family-range table is only the beginning. The proposed size must pass all three gates in the same published model row: torque, allowable speed and shaft-hole configuration. Then overall dimensions and maintenance access are checked against the machine. This is why a quotation should follow configuration review rather than a universal online price.

Coupling Engineer Inspection
Engineering selection and inspection

Brake wheel and conical bore options

HCL, TCL and ZCL address brake-wheel configurations. ZCD is the conical shaft-hole version of the pin gear family. Both options demand more interface information than a generic shaft diameter. Send the brake geometry or taper drawing when those configurations are being considered.

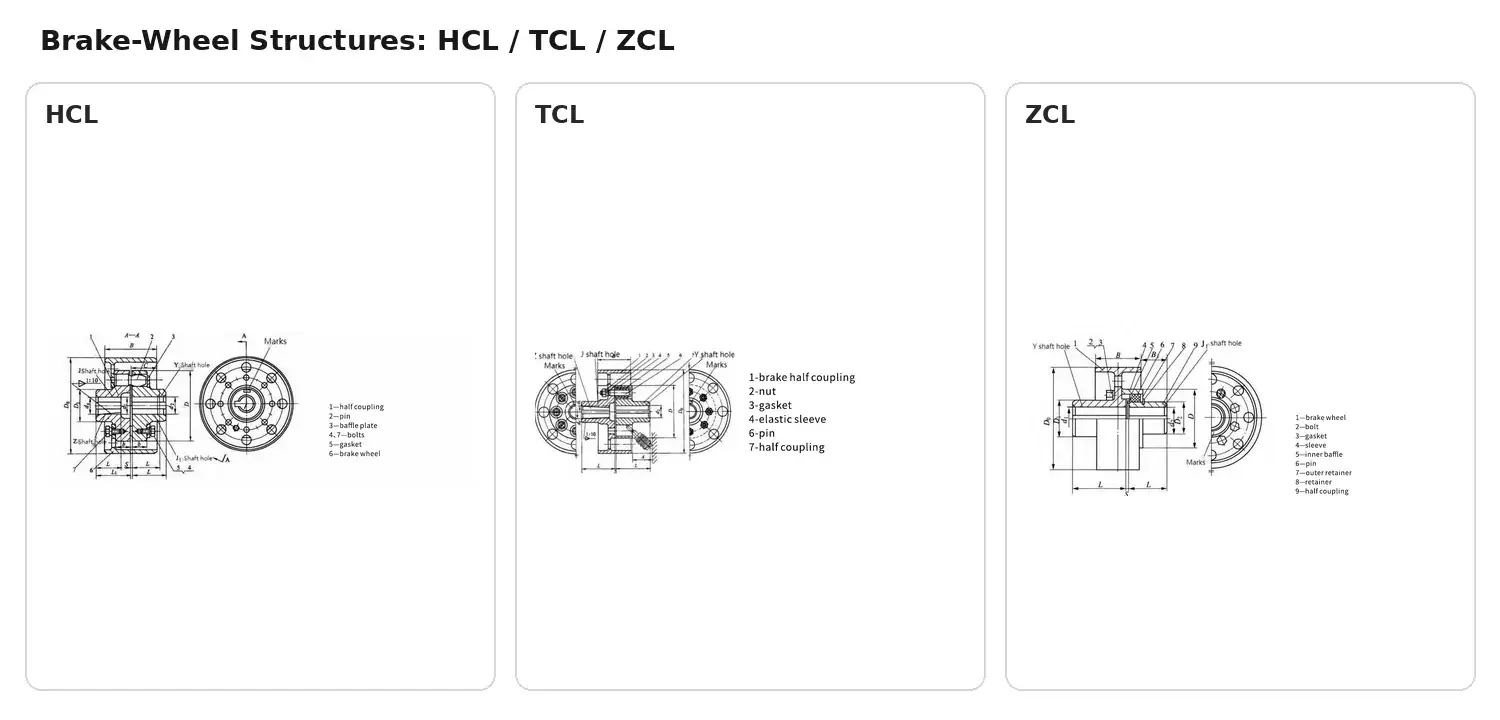

Hcl Tcl Zcl Brake Wheel Structure Comparison
Brake wheel coupling comparison

From product family to RFQ

Use the selection workflow to prepare the technical inputs, review application guidance for duty-specific questions, then send the RFQ with the shaft drawing when available.
