ZCL Elastic Pin Gear Coupling with Brake Wheel is the brake-wheel version of the elastic pin gear coupling family in the industrial pin-coupling range. The published family covers ZCL1-ZCL9, with nominal torque from 250 to 31,500 N·m and allowable speed from 4,500 to 950 r/min across the published size range. These are series limits, not a substitute for selecting the exact model row. Final selection should match both shaft interfaces, operating duty and available installation space.
| Selection item | Published information / action |
|---|---|
| Series | ZCL1-ZCL9 |
| Nominal torque range | 250 to 31,500 N·m |
| Allowable speed | 4,500 to 950 r/min across the published size range |
| Operating temperature / note | Use the published rating table for the selected ZCL size |
| Shaft interface | The published technical data notes that short-term overload should not exceed twice the nominal torque value; final design still requires model-specific bore and brake-wheel confirmation. |
| Quotation status | Pricing and availability are confirmed after duty and shaft data define the required configuration. |
Product structure and torque path
The ZCL structure combines a brake wheel with the pin gear coupling arrangement. The technical drawing identifies the brake wheel, bolt, gasket, sleeve, inner baffle, pin, outer retainer, retainer and half-coupling.
The section drawing below shows the documented mechanical arrangement and should be read together with the model table. The number, size and surrounding dimensions of components vary across ZCL1-ZCL9.
Published model overview

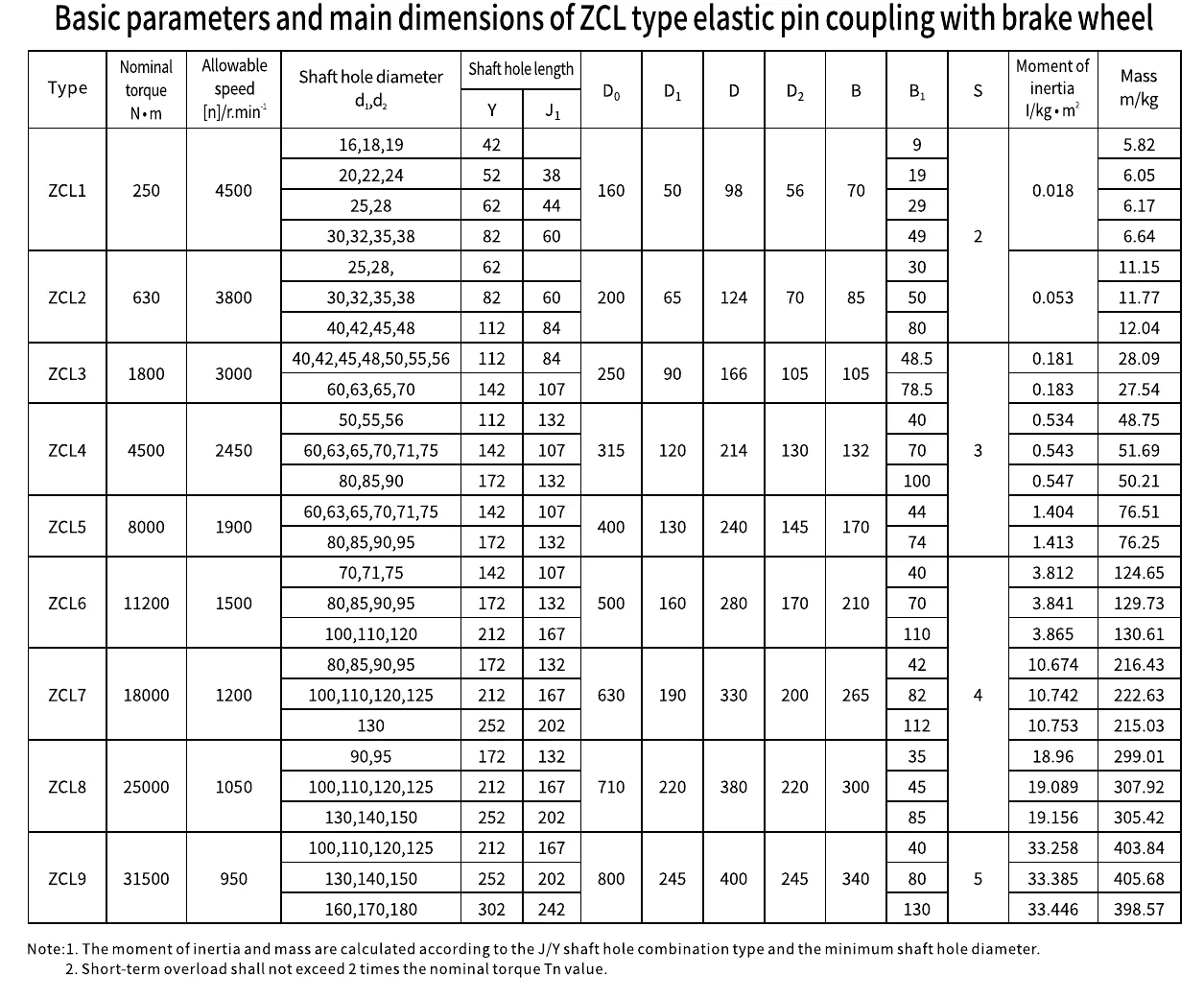

The table below transcribes the nominal torque and allowable speed for each published model or frame size. It is a screening table: shaft-hole diameter, shaft-hole length and the remaining dimensions must still be checked on the detailed size row and the machine drawing before release.
| Model / size | Nominal torque (N·m) | Allowable speed (r/min) |
|---|---|---|
| ZCL1 | 250 | 4,500 |
| ZCL2 | 630 | 3,800 |
| ZCL3 | 1,800 | 3,000 |
| ZCL4 | 4,500 | 2,450 |
| ZCL5 | 8,000 | 1,900 |
| ZCL6 | 11,200 | 1,500 |
| ZCL7 | 18,000 | 1,200 |
| ZCL8 | 25,000 | 1,050 |
| ZCL9 | 31,500 | 950 |
Published series ratings
Published technical data list ZCL1-ZCL9 as one family. Across that family, nominal torque spans 250 to 31,500 N·m, while allowable speed spans 4,500 to 950 r/min across the published size range. A larger nominal rating does not automatically make a model suitable: the shaft-hole combination, shaft-hole length, outer dimensions and the actual machine speed must also fit the selected row.
| Parameter | Published family information |
|---|---|
| Model / size range | ZCL1-ZCL9 |
| Nominal torque | 250 to 31,500 N·m |
| Allowable speed | 4,500 to 950 r/min across the published size range |
| Operating note | Use the published rating table for the selected ZCL size |
| Bore and shaft-hole length | Model-specific; confirm against both shaft drawings |
| Final configuration | Confirmed from exact duty, shaft interface and dimensional envelope |
Shaft bore, interface and available space
The published technical data notes that short-term overload should not exceed twice the nominal torque value; final design still requires model-specific bore and brake-wheel confirmation.
For a replacement enquiry, send the existing coupling designation if known, but do not rely on the designation alone. Include both shaft diameters, usable shaft lengths, keyway or taper information, the distance between machine reference faces and a drawing or clear dimensional sketch. For a new machine, the coupling should be reviewed at the same time as the motor, gearbox or driven-shaft arrangement so that removal space and inspection access are not trapped by surrounding structure.
Application and duty review
This series can only be matched to an application after the operating duty is known. Application guidance is used to identify duty questions before a model is proposed. For ZCL Elastic Pin Gear Coupling with Brake Wheel, check normal running torque, operating speed, start/stop behavior, reversing or braking where relevant, shaft alignment, environmental conditions and the consequence of a planned stop for inspection.
When the duty falls near a published rating boundary, or when shocks and process interruptions are important, send the full machine duty instead of choosing from the headline range. The quotation should identify the exact size proposed and the shaft-hole arrangement used for that proposal.
Selection and customization workflow
1. Define the drive
Record driver power, normal speed, driven equipment, operating pattern and any braking or reversing requirement.
2. Confirm shafts
Provide both shaft diameters, shaft-hole lengths, key or taper details and the available coupling envelope.
3. Match the family
Compare the requested duty with the published model range and choose the configuration that fits the interface.
4. Review the drawing
Confirm the exact selected row and any requested manufacturing or inspection requirement before production release.
If you are comparing this product with another family, use the pin coupling selection guide rather than assuming that a larger coupling or a different elastic arrangement is automatically interchangeable.
Installation, inspection and maintenance
- Clean and inspect both shafts before the hubs are positioned.
- Confirm the selected bore geometry and axial location against the approved drawing.
- Align the connected machines within the machine maker and project requirements; flexibility is not a substitute for correcting poor alignment.
- Verify pins, sleeves or elastic elements, retainers, bolts and brake-wheel parts where applicable before fitting the guard.
- After commissioning, inspect for looseness, unusual wear, displaced components, abnormal vibration or surrounding machine conditions that may load the coupling unevenly.
Maintenance intervals should follow the actual duty, inspection findings and machine requirements. Service intervals and part life depend on the actual duty, environment, installation condition and inspection findings.
Procurement questions to resolve before release
| Question | Information to provide |
|---|---|
| What must the coupling transmit? | Operating torque or motor/drive data, speed and driven equipment. |
| What are the shaft interfaces? | d1, d2, usable shaft lengths, keyway or taper geometry and a drawing when available. |
| Is braking part of the assembly? | Brake-wheel requirement and geometry for HCL, TCL or ZCL configurations. |
| What is the environment? | Temperature, dust, moisture, corrosion exposure or other project-specific conditions. |
| What documentation is required? | Drawing approval, inspection items and any material or certificate requirement requested by the project. |
Frequently asked questions
Can I choose a size from torque alone?
No. Torque is one gate. Speed, shaft bores, shaft-hole lengths, overall dimensions and operating conditions must fit the same model row.
Can the product replace an existing coupling with the same family name?
A family name is not enough to confirm interchangeability. Send the existing drawing or all critical interface dimensions for comparison.
Are material grades and certificates included automatically?
Material grades, certificates and inspection documents are order-specific. List any required item in the RFQ so it can be confirmed in the quotation.
How should I request a quotation?
Send the coupling family if known, torque or drive power, speed, both shaft interfaces, driven equipment, quantity and a drawing or existing-product photo when available.
Where can I compare related families?
Review the Brake Wheel Pin Couplings category, then use the engineering guide to compare the torque path and interface before requesting final selection.
Request a model-specific quotation
For ZCL Elastic Pin Gear Coupling with Brake Wheel, send the exact duty and shaft data rather than an assumed size. The engineering RFQ can be submitted through the form below; send an RFQ if you prefer to attach a drawing from the main contact page.
Decision record and release checks
Procurement handoff for ZCL Elastic Pin Gear Coupling with Brake Wheel is strongest when the quotation and drawing use the same model designation, shaft configuration and open-item list. Purchasing can then compare offers on the basis of the same duty and interface information instead of comparing only a family name. Before order release, confirm quantity, required drawing approval, any project-specific documentation, and which dimensions remain customer-confirmed. This keeps technical acceptance separate from commercial terms such as delivery schedule or packaging, which should be agreed for the actual order.
Commissioning closes the selection loop for ZCL Elastic Pin Gear Coupling with Brake Wheel. Before the guard is closed, verify hub position, shaft engagement, fasteners, pins, sleeves or other elastic components, brake hardware where applicable, and the free rotating envelope. Rotate or jog the train only under the machine owner’s approved procedure. After initial operation, recheck visible joints and compare noise or vibration with the commissioning baseline. If the condition changes, inspect the driver, coupling, shafts and driven machine as one system.
For ZCL Elastic Pin Gear Coupling with Brake Wheel, the practical decision is to coordinate coupling rating with brake-wheel diameter, shaft position and the actual start/stop duty. Treat every headline family range as a screening boundary rather than a finished design. The final proposal should point to one specific size and show that its published torque, allowable speed and shaft options all correspond to the same row. If any of those inputs are missing, keep the item open in the RFQ instead of substituting an assumed value. This makes the engineering record easier to review later because the reason for choosing the configuration is visible from the duty data and the drawing.
The interface review for ZCL Elastic Pin Gear Coupling with Brake Wheel should record both shaft interfaces plus brake-wheel diameter, axial position, brake hardware clearance and guard envelope. Measure from stable machine reference faces and distinguish the usable shaft engagement from nearby shoulders, spacers or guards. A replacement request also needs the existing coupling envelope and removal direction, not only a shaft diameter. When dimensions come from an existing machine, note which values were measured and which came from a controlled drawing so the quotation team can resolve any conflict before a hub or bore is released.
| Review item | Project-specific check |
|---|---|
| Selection basis | Coordinate coupling rating with brake-wheel diameter, shaft position and the actual start/stop duty. |
| Interface record | Both shaft interfaces plus brake-wheel diameter, axial position, brake hardware clearance and guard envelope. |
| Operating review | Frequent starts and stops, braking cycles, reversing where applicable, and heat or wear visible at the brake interface. |
| Inspection focus | Brake-wheel reference surfaces, runout, hub fit, pins or sleeves, retainers and fastener security. |
| Maintenance access | Safe access to the brake wheel, pins and elastic elements while preserving the alignment baseline. |
