How to Select a Pin Coupling

Start with the machine duty

Record the driver, driven equipment and the exact shaft location where the coupling will operate. Capture normal operating speed at the coupling, the transmitted torque or the driver information needed to determine it, start/stop pattern, reversing or braking, and any process shocks. Avoid labels such as standard or heavy duty unless the actual duty data accompanies them. Those labels are useful only after the measurable requirements are known.

Confirm the shaft interface

Measure both shafts and identify the usable insertion length. Record keyway details or taper geometry where applicable, the axial distance between machine reference faces and the radial envelope available for the coupling. If a drawing exists, send it. A coupling family often contains several bore combinations for one frame size, so shaft diameter alone is not enough to lock the configuration.

Use published ratings as gates

Compare the requested torque and speed with the same published model row. A model should not be accepted because one row covers torque while another row covers the speed or bore. If the operating point is close to a boundary, provide the full duty and allow the final selection to be reviewed rather than applying an unpublished correction factor. This keeps the quotation tied to evidence and prevents a generic online table from being mistaken for a design approval.

Compare configuration, not appearance

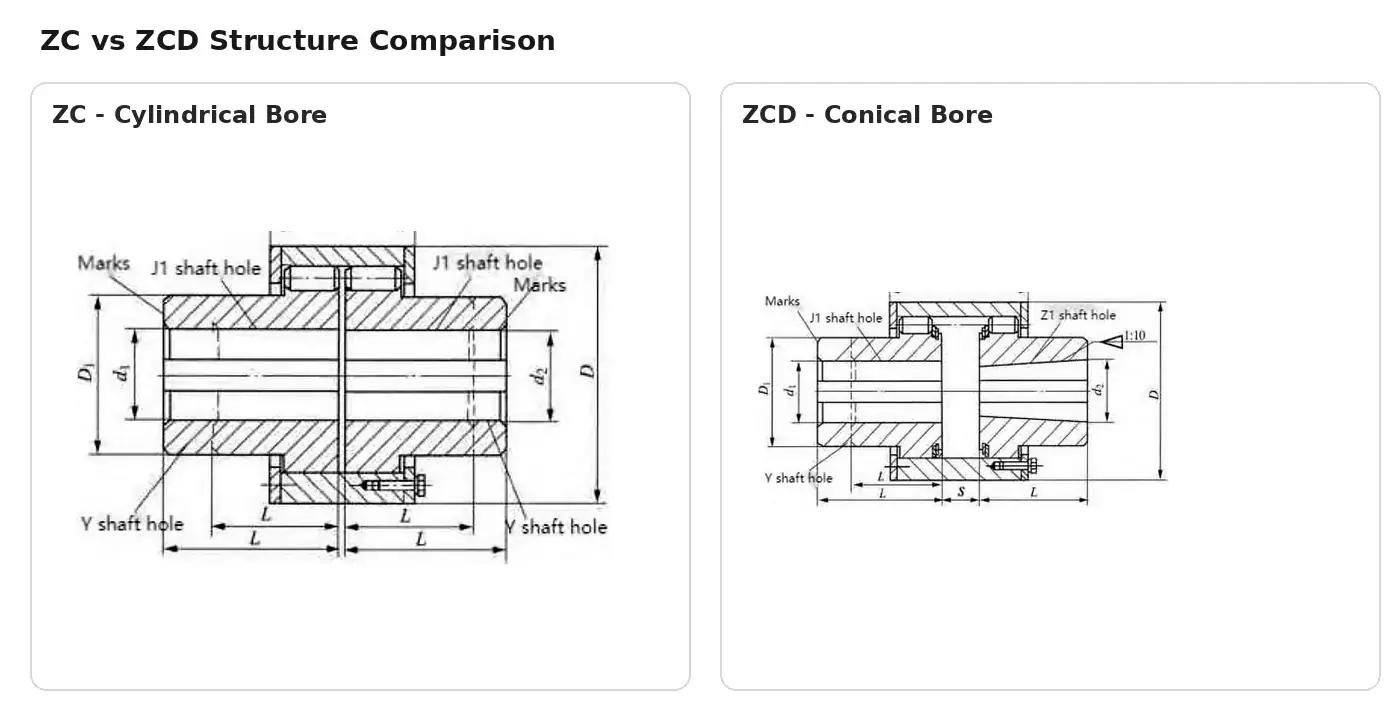

Two couplings can look similar in a product photo and still have different torque paths, elastic interfaces or shaft-hole arrangements. Use section drawings and product-family descriptions to understand which elements carry torque and which parts provide compliance. This is especially important when comparing HC, TC/GTC, ZC/ZCD and brake-wheel variants. A replacement request should be treated as a dimensional and functional comparison, not as a name-matching exercise.

Installation and verification

The selection process should finish with a drawing or configuration that can be inspected. Before commissioning, verify the installed hub positions, shaft engagement, fasteners, pins and elastic elements, brake wheel where applicable, guard clearance and machine alignment. After initial operation, recheck for looseness, abnormal wear or vibration. If the surrounding motor, gearbox, pump, conveyor or other driven machine shows a problem, investigate the complete drive train rather than assuming the coupling is the only source.

Next decision and RFQ

Use these linked resources only where they advance the current decision: pin coupling product families HC elastic pin coupling engineering RFQ. For a final model proposal, send torque or driver data, speed, both shaft interfaces, the driven equipment, operating pattern, quantity and any drawing or existing-coupling information.

Decision record and release checks

Operating conditions can change the preferred configuration even when the steady running point appears simple. For How to Select a Pin Coupling, review starts, stops, reversing, braking, process shock, temperature, contamination and access for inspection. These observations belong next to the numerical duty because they explain whether the coupling is being asked to absorb routine transient behaviour or compensate for a machine problem that should be corrected elsewhere. A flexible pin coupling can accommodate limited relative movement by design, but it should not be used as a substitute for a sound base, correct shaft condition or proper alignment of the connected machines.

Inspection planning for How to Select a Pin Coupling should concentrate on bore geometry, reference-face runout, pin or sleeve arrangement, fastener condition and the agreed drawing revision. The inspection record should identify the drawing or approved configuration being checked and separate dimensional acceptance from optional commercial documentation. If a project asks for a specific material, treatment, inspection report or certificate, place that requirement on the RFQ and quotation before production release. Do not infer it from a similar model name or from a product photo.

Maintenance planning for How to Select a Pin Coupling should preserve access to pins, elastic elements, sleeves, retainers and adjacent guards without forcing the connected machines apart. Establish a baseline after installation and compare later inspections with that condition. Changes such as loosened fasteners, displaced retainers, abnormal elastic-element wear, brake-surface issues where applicable, or new vibration should trigger a drive-train review rather than an automatic assumption that the coupling alone caused the symptom. Correcting the surrounding cause is as important as replacing a visibly worn part.

Procurement handoff for How to Select a Pin Coupling is strongest when the quotation and drawing use the same model designation, shaft configuration and open-item list. Purchasing can then compare offers on the basis of the same duty and interface information instead of comparing only a family name. Before order release, confirm quantity, required drawing approval, any project-specific documentation, and which dimensions remain customer-confirmed. This keeps technical acceptance separate from commercial terms such as delivery schedule or packaging, which should be agreed for the actual order.

Commissioning closes the selection loop for How to Select a Pin Coupling. Before the guard is closed, verify hub position, shaft engagement, fasteners, pins, sleeves or other elastic components, brake hardware where applicable, and the free rotating envelope. Rotate or jog the train only under the machine owner’s approved procedure. After initial operation, recheck visible joints and compare noise or vibration with the commissioning baseline. If the condition changes, inspect the driver, coupling, shafts and driven machine as one system.

For How to Select a Pin Coupling, the practical decision is to match the requested torque, operating speed and both shaft interfaces to one published model size. Treat every headline family range as a screening boundary rather than a finished design. The final proposal should point to one specific size and show that its published torque, allowable speed and shaft options all correspond to the same row. If any of those inputs are missing, keep the item open in the RFQ instead of substituting an assumed value. This makes the engineering record easier to review later because the reason for choosing the configuration is visible from the duty data and the drawing.
