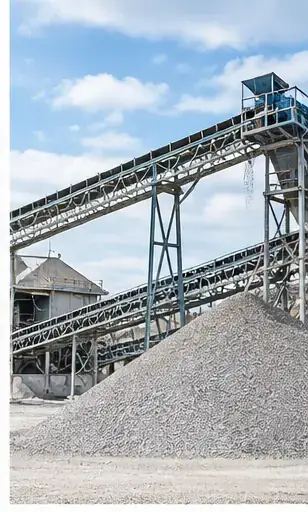

Pin Couplings for Mining and Bulk Material Handling should be approached as a drive-selection problem, not as a search for a generic industry label. The relevant context is mining and bulk-material drives exposed to starting torque, shock, dust and large shaft interfaces. Mining and bulk-material drive selection should be based on the actual load variation, speed, shafts, contamination and service access at the specific drive station. A defensible choice therefore starts with the machine duty and ends with a specific model row whose torque, speed and shaft interface all fit.
Where the coupling sits in the drive
Identify the actual connection before choosing a family: motor to gearbox, gearbox to driven shaft, brake-wheel location, or another shaft-to-shaft interface. Record the rotating speed at the coupling itself rather than assuming it is the same as another shaft in the machine. Note whether the coupling is accessible after guards are installed and whether a planned maintenance stop allows the elastic elements or pins to be reached without moving major equipment.
Operating conditions to record
- Normal transmitted torque or the driver and driven-machine data needed to determine it.
- Operating speed at the coupling, start/stop frequency and any reversing or braking behavior.
- Both shaft diameters, shaft-hole lengths, key or taper details and available axial space.
- Dust, moisture, corrosion exposure, temperature and any cleaning or process conditions relevant to the machine.
- Inspection access, replacement access and the consequence of an unplanned stop.
These inputs are more useful than a broad label such as heavy duty. They allow the candidate series to be checked against published limits while keeping unsupported safety factors, materials or life claims out of the selection.
Candidate pin coupling families
| Series | Published nominal torque range | Published allowable speed range | Why it may be considered |
|---|---|---|---|
| ZC Elastic Pin Gear Coupling | 112 to 2,800,000 N·m | 5,000 to 460 r/min across the published size range | pin-mediated torque transfer through an outer jacket structure |
| GTC Elastic Sleeve Pin Coupling | 200 to 1,300,000 N·m | 10,000 to 550 r/min across the published size range | large-range elastic sleeve pin family with service-friendly elastomer replacement |
| HC Elastic Pin Coupling | 250 to 180,000 N·m | 8,500 to 950 r/min across the published size range | standard elastic pin arrangement with MC nylon elastic elements |
Candidate does not mean automatically suitable. The exact size and shaft-hole combination must be confirmed from the exact published model row and the project drawing.
Integration and safety checks
Review the full drive train before final release. Confirm that the coupling can be installed without forcing the shafts, that the connected machines can be aligned, that the rotating envelope clears the guard and adjacent structure, and that any brake wheel is positioned correctly relative to its brake hardware. If the machine has significant process shock, reversing or frequent starts, describe that duty explicitly rather than assuming the published nominal torque captures the whole load case.
Maintenance implications
Maintenance planning should make the expected inspection points visible and accessible. Pins, elastic elements or sleeves, retainers, bolts and brake-wheel interfaces should be checked for looseness, wear, deformation or displacement. If wear is uneven, investigate alignment and the surrounding machine condition as well as replacing parts. No single maintenance interval applies to every machine. Set the inspection interval from the project duty, operating environment and observed condition.
RFQ preparation
For this duty, start with the ZC Elastic Pin Gear Coupling only as a candidate and use the pin coupling selection workflow to compile the inputs. Send the driven-equipment description, torque or drive data, speed, both shafts, available space, quantity and a drawing. The final quotation should identify the proposed size and the exact shaft-hole arrangement.
Decision record and release checks
Maintenance planning for Pin Couplings for Mining and Bulk Material Handling should preserve inspection access for wear parts and a clear method to distinguish coupling wear from a driver, shaft or driven-machine problem. Establish a baseline after installation and compare later inspections with that condition. Changes such as loosened fasteners, displaced retainers, abnormal elastic-element wear, brake-surface issues where applicable, or new vibration should trigger a drive-train review rather than an automatic assumption that the coupling alone caused the symptom. Correcting the surrounding cause is as important as replacing a visibly worn part.
Procurement handoff for Pin Couplings for Mining and Bulk Material Handling is strongest when the quotation and drawing use the same model designation, shaft configuration and open-item list. Purchasing can then compare offers on the basis of the same duty and interface information instead of comparing only a family name. Before order release, confirm quantity, required drawing approval, any project-specific documentation, and which dimensions remain customer-confirmed. This keeps technical acceptance separate from commercial terms such as delivery schedule or packaging, which should be agreed for the actual order.
Commissioning closes the selection loop for Pin Couplings for Mining and Bulk Material Handling. Before the guard is closed, verify hub position, shaft engagement, fasteners, pins, sleeves or other elastic components, brake hardware where applicable, and the free rotating envelope. Rotate or jog the train only under the machine owner’s approved procedure. After initial operation, recheck visible joints and compare noise or vibration with the commissioning baseline. If the condition changes, inspect the driver, coupling, shafts and driven machine as one system.
For Pin Couplings for Mining and Bulk Material Handling, the practical decision is to use the real transmitted duty to screen the published torque range, then verify speed and interfaces on the same model row. Treat every headline family range as a screening boundary rather than a finished design. The final proposal should point to one specific size and show that its published torque, allowable speed and shaft options all correspond to the same row. If any of those inputs are missing, keep the item open in the RFQ instead of substituting an assumed value. This makes the engineering record easier to review later because the reason for choosing the configuration is visible from the duty data and the drawing.
The interface review for Pin Couplings for Mining and Bulk Material Handling should record shaft diameters, engagement lengths, hub envelope and the installation space around the higher-duty connection. Measure from stable machine reference faces and distinguish the usable shaft engagement from nearby shoulders, spacers or guards. A replacement request also needs the existing coupling envelope and removal direction, not only a shaft diameter. When dimensions come from an existing machine, note which values were measured and which came from a controlled drawing so the quotation team can resolve any conflict before a hub or bore is released.
| Review item | Project-specific check |
|---|---|
| Selection basis | Use the real transmitted duty to screen the published torque range, then verify speed and interfaces on the same model row. |
| Interface record | Shaft diameters, engagement lengths, hub envelope and the installation space around the higher-duty connection. |
| Operating review | Load changes, starts, process shock, reversing where relevant, dust or contamination, and the consequence of an unplanned stop. |
| Inspection focus | Hub and pin interfaces, fasteners, reference faces, elastic components and signs of uneven loading. |
| Maintenance access | Inspection access for wear parts and a clear method to distinguish coupling wear from a driver, shaft or driven-machine problem. |
